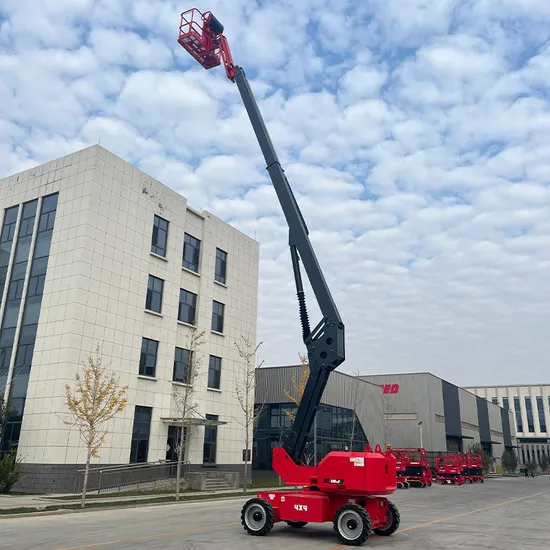

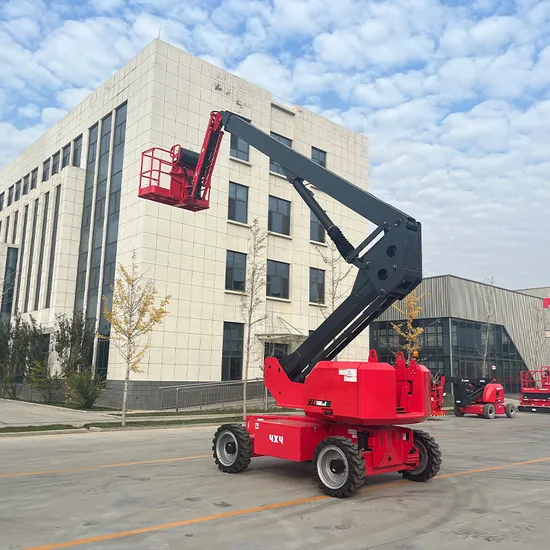

| MODEL | HT16JE | HT18JE |
| Max.Working Height | 18.2m | 18.2m |
| Max. Platform Height | 16.2m | 16.2m |
| Max. Horizontal Extension | 11.9m | 11.9m |
| A-Length (Stowed) | 8.5m | 8.5m |
| B-Width (Stowed) | 2.31m | 2.31m |
| C-Heights (Stowed) | 2.51m | 2.51m |
| D- Platform Length | 1.83m | 1.83m |
| E- Platform Width | 0.76m | 0.76m |
| F- Wheelbase | 2.4m | 2.4m |
| G- Ground Clearance | 0.3m | 0.3m |
| Wheel track | 2.05m | 2.05m |
| PERFORMANCE | ||
| Platform Capacity | 300kg | 300kg |
| Max.Drive Speed | 4.8km/h | 4.8km/h |
| Gradeability | 0.4 | 0.4 |
| Turning Radius(In.) | 2.62m | 2.62m |
| Turning Radius(Out.) | 5m | 5m |
| Turntable Rotation | 360°Continuous | 360°Continuous |
| Platform Rotation | ±80° | ±80° |
| Vertical JIB rotation | -70°to70° | -70°-70° |
| Tilt Rating | 5° | 5° |
| Operating Wind Speed | 12.5m/s | 12.5m/s |
| Tail Swing | 1.16m | 1.16m |
| Hydraulic Tank Capacity | 70L | 70L |
| Auxiliary power | 12V DC | 12V DC |
| Drive Method | FWD | FWD |
| Turn Method | Front | Front |
| Lift Motor | 11kw | 11kw |
| Drive Motor | 3.3kw | 3.3kw |
| POWER | ||
| Batteries(V/Ah) | 48V304Ah | 48V304Ah |
| Charger | 100-240VAC/16A | 100-240VAC/16A |
| Tires | 33X12-20 | 33X12-20 |
| WEIGHT | ||
| Weight | 7900kg
About the companycnzgmg Heavy Industry Machinery has been deeply engaged in the lifting platform field for 20 years, and is a professional manufacturer integrating R&D, production and sales. Factory and Equipment ShowOur Advantages Technology R&D AdvantageWith a 200-person R&D team, 58 national patents (including 12 invention patents), and a "Intelligent Lifting Technology Laboratory" co-founded with Shandong University School of Mechanical Engineering. Annual R&D investment accounts for 8% of sales, ensuring technology leads the industry by 3-5 years. Production Process AdvantageAdopting robot welding (weld strength increased by 30%), shot blasting rust removal (rust removal grade up to Sa2.5), electrostatic spraying (coating thickness 80-120μm, salt spray resistance test up to 1000 hours), equipment service life extended to more than 15 years. Customization Capability AdvantageWe can customize the table size (1-10m), lifting height (1-20m), load (3-100 tons) according to customers' requirements, and support the installation of explosion-proof devices, remote monitoring system, non-slip table and other special configurations, and provide 3D design solutions within 72 hours. FAQ3-year warranty for the whole machine, 5-year for core parts (hydraulic system, motor included). 7-15 workdays (varies by complexity); initial proposal ready within 12 hours. 15-30 days via DHL/COSCO; full tracking provided throughout. Queries answered within 12 hours; urgent issues (e.g., failure to lift) get on-site support within 48 hours. Free on-site installation in China; overseas orders include video guides, with paid engineer dispatch available. T/T, L/C for international orders. 30% deposit required for custom models, balance paid before shipment. Factories (loading/unloading), construction (aerial work), logistics (container handling), warehousing (equipment maintenance). CE, ISO 9001 certified—compliant with EU and global industry standards. Mode of TransportationDeparting from major ports, FCL/LCL transportation, providing door-to-port (DAP), port-to-port (FOB) services, including export customs declaration and commodity inspection procedures Land transportation: For neighboring countries in Central Asia and Southeast Asia, cross-border truck transportation, arriving in 15-20 days Air freight: Urgent orders can be delivered by international air freight (such as DHL Aviation) in 7-10 days, suitable for small customized parts WHY THEY SAY TO US
