Factory Supply 10m Height Hydraulic Lift Table Aerial Working Platform, CE ISO Proved

Specialized inFactory Supply 10m Height Hydraulic Lift Table Aerial Working Platform, CE ISO Provedand related product development and production

Samples: Available / Stock: Sufficient

Estimated delivery time: 3-5 days

Product Parameters

Basic Info.

Model NO.

HS1012H

Application

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism

Scissor Lift

Carrying Capacity

Weight Level

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001, ANSI

Turning Radius (out.)

2.3m

up/Down Time

62/39s

Control

Proportional

Multi Disc Brake

Rear

Tires (mm)

381mmx127mm

Transport Package

High Quality Paper Boxes with Stretch Film

Specification

2.49m x 1.18m x 2.51m

Trademark

HERED

Origin

China

HS Code

84289090

Production Capacity

20, 000 Units /Year

Packaging & Delivery

Package Size

249.00cm * 118.00cm * 251.00cm

Package Gross Weight

2840.000kg

Product Description

Online consultation to get the lowest price

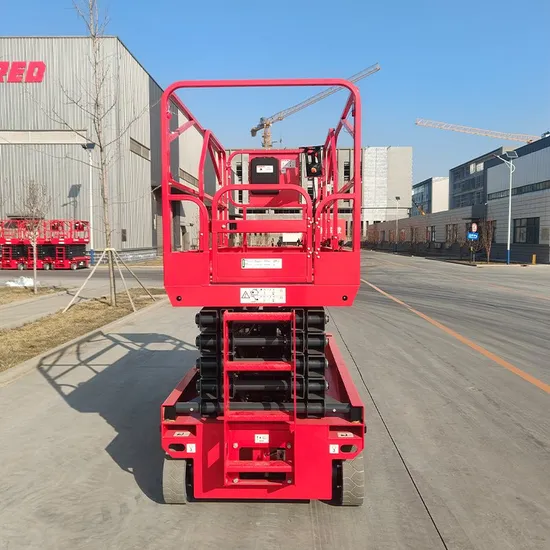

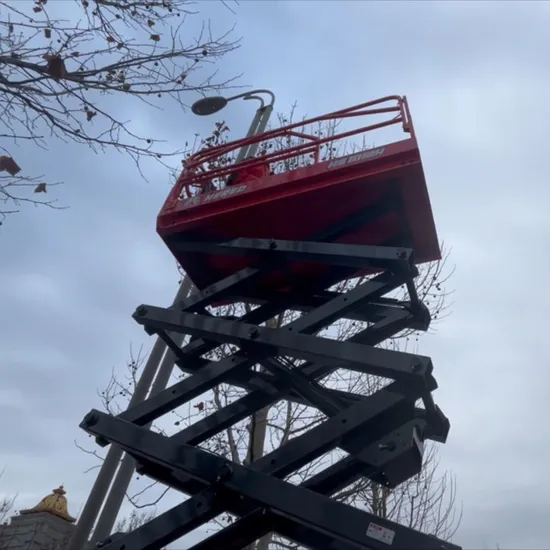

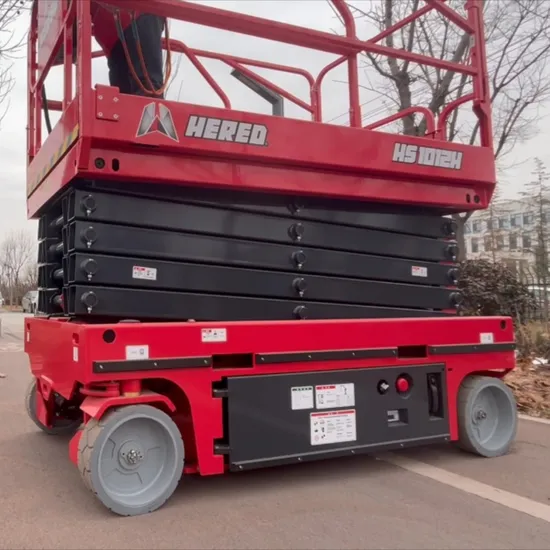

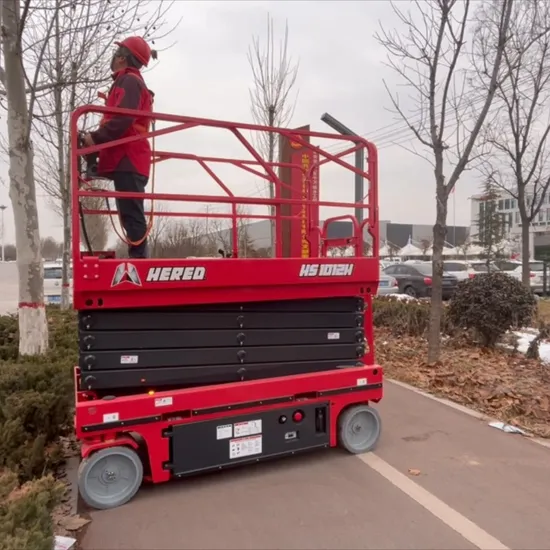

CE ISO Proved Factory Supply 10m Height Lift Table Hydraulic Lift Aerial Working Platform

1. Optimized matching, high cycle times, better endurance.
2. Precise control greatly improves the smoothness of operating.
3. Large ground clearance, stronger passability

MODEL	HS1012H
Max. Working Height(In/out)	11.8m/11.8m
A-Max. Platform Height(In/out)	9.8m/9.8m
B-Platform Length	2.26m
C-Platform Width	1.12m
Extension Size	0.9m
D-Heights (Rails Up)	2.51m
Height (Rails Down)	1.96m
E-Length (with Ladder)	2.49m
F-Overall Width	1.18m
G-Wheel Base	1.87m
H-Clearance (Stowed)	0.1m
I-Clearance (Raised)	0.02m
PERFORMANCE
Platform Capacity	320kg
Extension Capacity	113kg
Max. Occupancy(in/out)	2/1
Max.Drive Speed (Stowed)	3.5km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Out.)	2.3m
Up/Down Time	62/39s
Gradeability	0.25
Max. Slope	1.5°/3°
Control	Proportional
Drive	FWD
Multi Disc Brake	Rear
Tires (mm)	381mmX127mm
Max.Wind Speed	12.5m/s
POWER
Batteries (V/Ah)	24V/200Ah
Charger	100-240VAC/10A
WEIGHT
Weight	2840kg

CE ISO Proved Factory Supply 10m Height Lift Table Hydraulic Lift Aerial Working Platform

Our Advantages

Technology R&D Advantage

With a 200-person R&D team, 58 national patents (including 12 invention patents), and a "Intelligent Lifting Technology Laboratory" co-founded with Shandong University School of Mechanical Engineering. Annual R&D investment accounts for 8% of sales, ensuring technology leads the industry by 3-5 years.

Production Process Advantage

Adopting robot welding (weld strength increased by 30%), shot blasting rust removal (rust removal grade up to Sa2.5), electrostatic spraying (coating thickness 80-120μm, salt spray resistance test up to 1000 hours), equipment service life extended to more than 15 years.

Customization Capability Advantage

We can customize the table size (1-10m), lifting height (1-20m), load (3-100 tons) according to customers' requirements, and support the installation of explosion-proof devices, remote monitoring system, non-slip table and other special configurations, and provide 3D design solutions within 72 hours.

FAQ

How long is the warranty?

3-year warranty for the whole machine, 5-year for core parts (hydraulic system, motor included).

How long for custom orders?

7-15 workdays (varies by complexity); initial proposal ready within 12 hours.

How long is international shipping?

15-30 days via DHL/COSCO; full tracking provided throughout.

How fast is after-sales response?

Queries answered within 12 hours; urgent issues (e.g., failure to lift) get on-site support within 48 hours.

Do you provide installation?

Free on-site installation in China; overseas orders include video guides, with paid engineer dispatch available.

What payment methods are accepted?

T/T, L/C for international orders. 30% deposit required for custom models, balance paid before shipment.

What scenarios is it suitable for?

Factories (loading/unloading), construction (aerial work), logistics (container handling), warehousing (equipment maintenance).

Are there international certifications?

CE, ISO 9001 certified—compliant with EU and global industry standards.

Mode of Transportation

Departing from major ports, FCL/LCL transportation, providing door-to-port (DAP), port-to-port (FOB) services, including export customs declaration and commodity inspection procedures

Land transportation: For neighboring countries in Central Asia and Southeast Asia, cross-border truck transportation, arriving in 15-20 days

Air freight: Urgent orders can be delivered by international air freight (such as DHL Aviation) in 7-10 days, suitable for small customized parts
