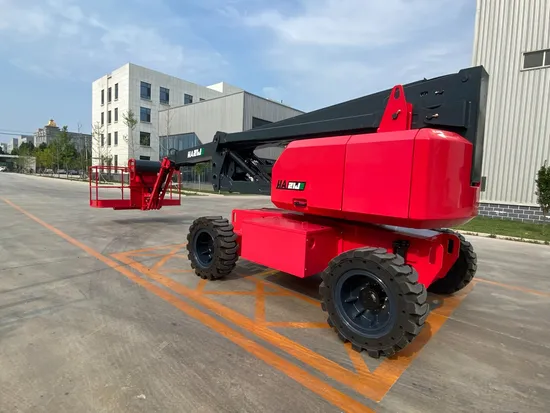

| MODEL | HA21JE |
| Max.Working Height | 22.55m |
| Max. Platform Height | 20.55m |
| Max. Horizontal Extension | 12.5m |
| Max.Up and Over Height | 8.9m |
| A- Length (Stowed) | 9.05m |
| B- Width (Stowed) | 2.49m |
| C- Height (Stowed) | 2.7m |
| D- Platform Length | 2.4m |
| E- Platform Width | 0.9m |
| F- Wheelbase | 2.5m |
| G- Ground Clearance | 0.31m |
| PERFORMANCE | |
| Platform Capacity | 250kg |
| Max.Drive Speed (Stowed) | 4.8km/h |
| Gradeability | 45% |
| Turning Radius(In.) | 2.42m |
| Turning Radius(Out.) | 5.57m |
| Turntable Rotation | 360°Continuous |
| Platform Rotation | ±80° |
| H- Turntable Tailswing | 0.6 |
| Tilt Rating | 5° |
| Operating Wind Speed | 12.5m/s |
| Lift Motor | 11kw |
| Drive Motor | 3.3kw |
| POWER | |
| Batteries(V/Ah) | 48V/440Ah |
| Charger | 100-240VAC/16A |
| Tires | 36X14-20 |
| WEIGHT | |
| Weight | 11000kg |
Located in Liaocheng, Shandong province, HERED(Shandong) Intelligent Technology Co., Ltd. was founded since 2008. After years of fast development, Hered specializes in the research, manufacture, sales and service of a wide range of access solutions and become a very important player in the MEWP business. HERED has achieved a number of awards and certifications in recognition of the brand's quality and achievements.
Hered has the industry's most complete product lines, with her own self-propelled scissor lift, articulating boom lift, and telescopic boom lift, with working heights from 6- 28 meters. Hered has very strict quality control process. Components and integrated lifts have the GB/CE/ANSI/IPAF certificates. Products are widely used in stadiums and plants, petrochemical sites, ship buildings, municipal works, ports, complex construction, commercial maintenance and so on.
HERED has served global customers in Europe, Southeast Asia, Africa and USA, totally more than 40 countries worldwide. Hered aims to provide intelligent, efficient and safe aerial work solutions to the global partners.
