Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001, ANSI
Max.Working Height
10.82m
Platform Height
8.82m
Carring Capacity
230kg
Lifting
Electric
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
5.38m x 1.19m x 2.04m
Trademark
HERED
Origin
China
HS Code
84289090
Production Capacity
10000 Sets/Year
Packaging & Delivery
Package Size
5.38cm * 1.19cm * 2.04cm
Package Gross Weight
6900.000kg
Product Description
Online consultation to get the lowest price

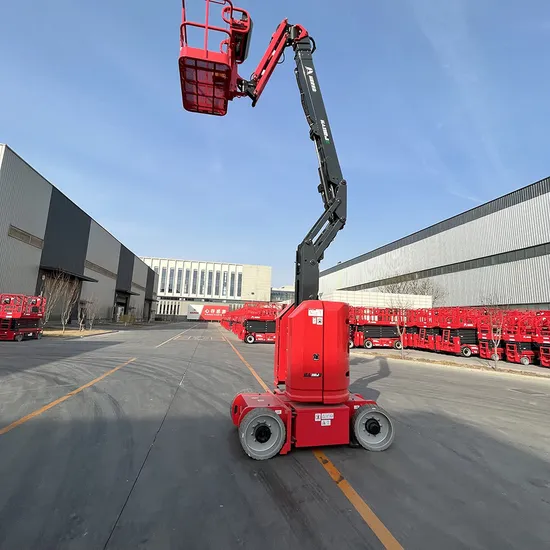

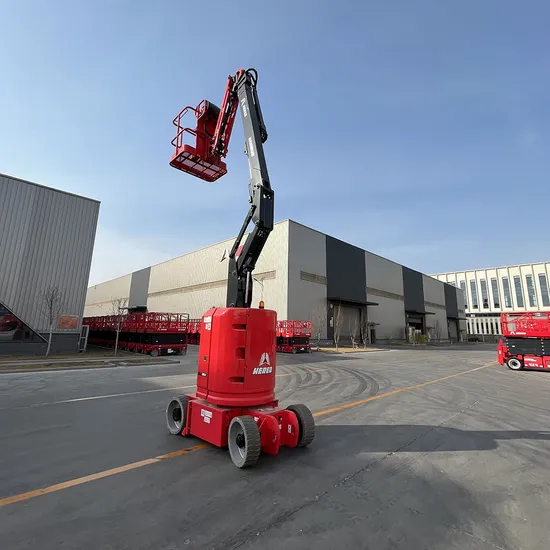

MODEL
HA09RJE
Max.Working Height
10.82m
Max. Platform Height
8.82m
Max. Horizontal Extension
6.29m
Max.Up and Over Height
3.77m
A- Length (Stowed)
5.38m
B- Width (Stowed)
1.19m
C- Height (Stowed)
2.04m
D- Platform Length
1.17m
E- Platform Width
0.76m
F-Clearance (Stowed)
0.09m
G-Wheel Base
1.58m
PERFORMANCE
Platform Capacity
230kg
Max.Drive Speed (Stowed)
4.8km/h
Gradeability
35%
Turning Radius(In.)
1.75m
Turning Radius(Out.)
3.35m
Turntable Rotation
355°Non-Continuous
Vertical JIB rotation
±90°
Platform Rotation
±90°
Tail Swing
0
Tilt Rating
3°
Max.Wind Speed
12.5m/s
POWER
Batteries(V/Ah)
48V/310Ah
Charger
100-240VAC/13.5A
Drive Motor
AC48V
Lift Motor
DC48V
Hydraulic Oil Tank Capacity
15L
Tires
24x7x17.5
Auxiliary power
Electric pumps
WEIGHT
Weight
6900kg
Located in Liaocheng, Shandong province, HERED(Shandong) Intelligent Technology Co., Ltd. was founded since 2008. After years of fast development, Hered specializes in the research, manufacture, sales and service of a wide range of access solutions and become a very important player in the MEWP business. HERED has achieved a number of awards and certifications in recognition of the brand's quality and achievements.
Hered has the industry's most complete product lines, with her own self-propelled scissor lift, articulating boom lift, and telescopic boom lift,with working heights from 6- 28 meters. Hered has very strict quality control process. Components and integrated lifts have the GB/CE/ANSI/IPAF certificates. Products are widely used in stadiums and plants, petrochemical sites, ship buildings, municipal works, ports, complex construction, commercial maintenance and so on.
HERED has served global customers in Europe, Southeast Asia, Africa and USA, totally more than 40 countries worldwide. Hered aims to provide intelligent, efficient and safe aerial work solutions to the global partners.
1. Q: Are you a factory or trading company? A: HERED(Shandong) Intelligent Technology Co., Ltd. is a factory with 10 years experience in the scissor lift articulatingboom lift, andtelescopicboom lift
About the company
cnzgmg Heavy Industry Machinery has been deeply engaged in the lifting platform field for 20 years, and is a professional manufacturer integrating R&D, production and sales.
Factory and Equipment Show
Our Advantages
Technology R&D Advantage
With a 200-person R&D team, 58 national patents (including 12 invention patents), and a "Intelligent Lifting Technology Laboratory" co-founded with Shandong University School of Mechanical Engineering. Annual R&D investment accounts for 8% of sales, ensuring technology leads the industry by 3-5 years.
Production Process Advantage
Adopting robot welding (weld strength increased by 30%), shot blasting rust removal (rust removal grade up to Sa2.5), electrostatic spraying (coating thickness 80-120μm, salt spray resistance test up to 1000 hours), equipment service life extended to more than 15 years.
Customization Capability Advantage
We can customize the table size (1-10m), lifting height (1-20m), load (3-100 tons) according to customers' requirements, and support the installation of explosion-proof devices, remote monitoring system, non-slip table and other special configurations, and provide 3D design solutions within 72 hours.
FAQ
How long is the warranty?
3-year warranty for the whole machine, 5-year for core parts (hydraulic system, motor included).
How long for custom orders?
7-15 workdays (varies by complexity); initial proposal ready within 12 hours.
How long is international shipping?
15-30 days via DHL/COSCO; full tracking provided throughout.
How fast is after-sales response?
Queries answered within 12 hours; urgent issues (e.g., failure to lift) get on-site support within 48 hours.
Do you provide installation?
Free on-site installation in China; overseas orders include video guides, with paid engineer dispatch available.
What payment methods are accepted?
T/T, L/C for international orders. 30% deposit required for custom models, balance paid before shipment.
CE, ISO 9001 certified—compliant with EU and global industry standards.
